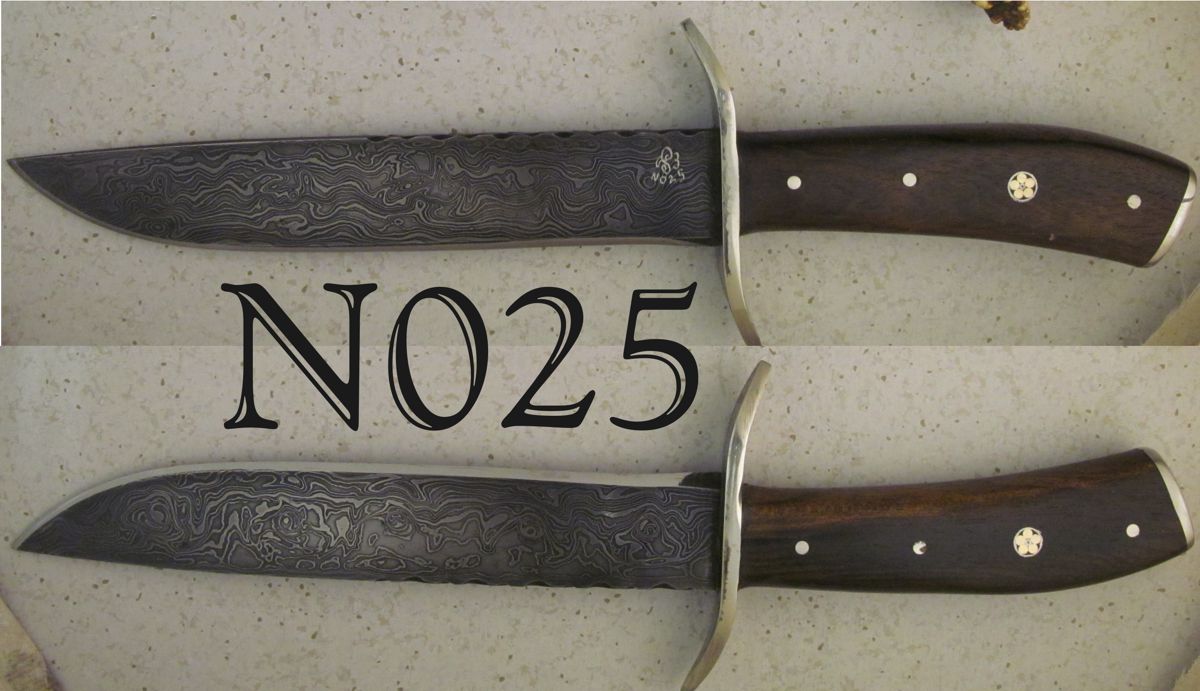

N025  Sold

Box Tang-drop pt

Date of Construction: 2014-06

Blade Characteristics    Steel Type: Damascus    Composition  :  O1/L6/1095/203E/WI    Billet #  :  2012-04    Number of Layers: 132    Pattern: Dolly Parton    Etch: Medium    Polish: Satin    Dimension (inches)       Length: 7.0       Max Thickness: 0.164       Min Thickness: 0.075

Handle Characteristics    Grip Material: Ziricote    Grip Type : Guard & pommel    Fittings Material: Nickel Silver bolster/SS pommel    Fasteners: Pins & Mosaic Pin    Dimension (inches)       Length: 4.7       Max Thickness: 0.854       Min Thickness: 0.78       Max Height: 1.203       Min Height: 0.968

Heat Treatment    Austenization & Quenching       Heat Source: Austenizer       Temperature (F): 1500       Quench material: Salt Pot       Quench temperature (F): 475    Tempering       Temperature (F): N/A       Duration (hrs): N/A       Repetitions: N/A

Cover provided

Comments

Box tang construction

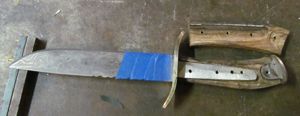

This is what the handle looked like before assembly

n/a  =  not applicable
