Box tang; drop handle | Date of Construction: 2017-11 |
Blade Characteristics Steel Type: Damascus Composition  : O1/nickel Billet #  : ? Number of Layers: 264 Pattern: Raindrop Etch: Medium Polish: Satin Dimension (inches) Length: 9.5 Max Thickness: 0.221 Min Thickness: 0.085 |
Handle Characteristics Grip Material: Ziricote Grip Type : Box Tang Fittings Material: Mokume Fasteners: Pins+ Mosaic Pin Dimension (inches) Length: 5.8 Max Thickness: 0.921 Min Thickness: 0.87 Max Height: 1.287 Min Height: 1.13 |
Heat Treatment Austenization & Quenching Heat Source: Austenizer Temperature (F): 1500 Quench material: Salt Pot Quench temperature (F): 475 Tempering Temperature (F): n/a Duration (hrs): n/a Repetitions: n/a |

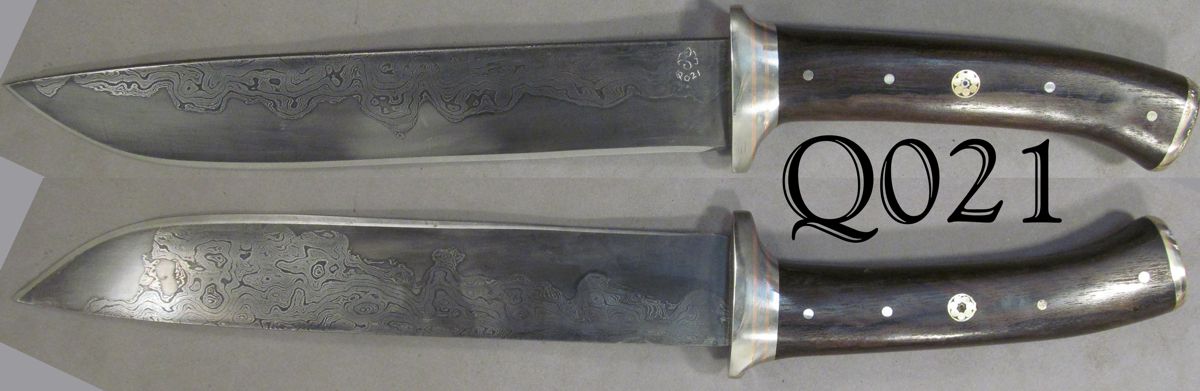

Massive blade - quasi-mokume guard and pommel (diffusion welded stacks of nickel silver+copper and nickel silver+copper+brass - respectively. San-mai construction - 1095/nickel over an O1 core. Family gift |
