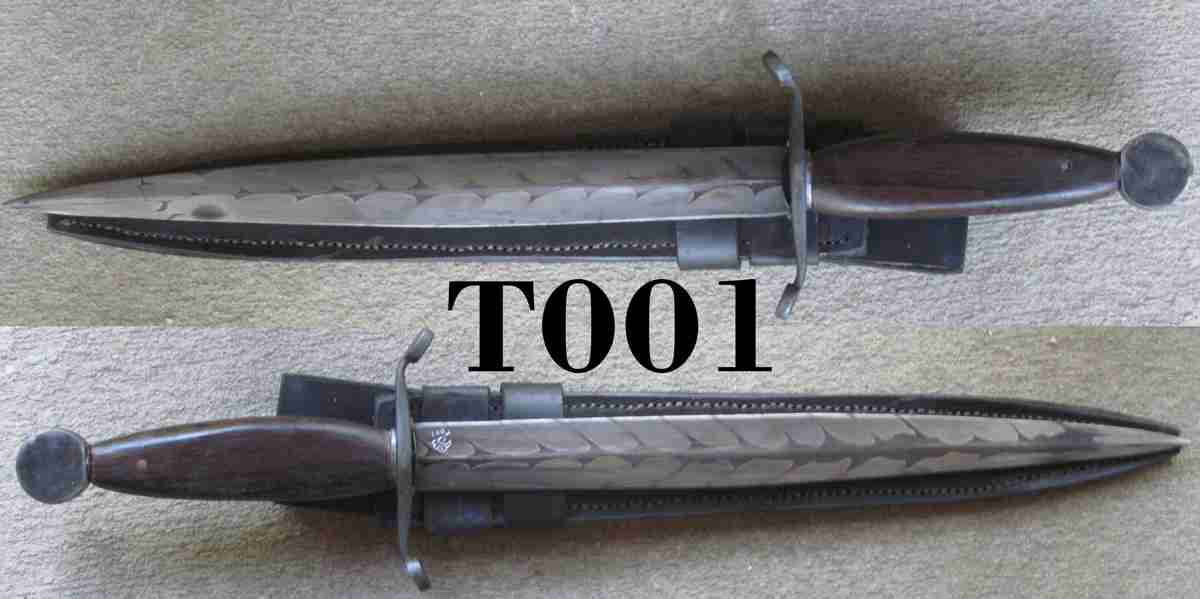

T001  Sold


Collectable Date of Construction: 2020-03

Blade Characteristics
   Steel Type: 203E & 1084 -Powder
   Composition  :  Twisted
   Billet #  :  n/a
   Number of Layers: n/a
   Pattern: Twist
   Etch: Medium
   Polish: Satin

Dimension (inches)
      Length: 13.00
      Max Thickness: 0.21
      Min Thickness: 0.06
Handle Characteristics
   Grip Material: Ziricote
   Grip Type : Dagger
   Fittings Material: mild steel blackened
   Fasteners: 1/4" pommel bolt & pin

Dimension (inches)
      Length: 6.5
      Max Thickness: 0.945
      Min Thickness: 0.568
      Max Height: 1.382
      Min Height: 0.747
Heat Treatment
   Austenization & Quenching
      Heat Source: Austenizer
      Temperature (F): 1500
      Quench material: Oil
      Quench temperature (F): ambient

Tempering
      Temperature (F): 400
      Duration (hrs): 2
      Repetitions: n/a


Full sheath provided

Comments
Blade was made of 2 rods of 203E ~ 5/16 diameter & 24" long - each was bend into a 'U' and one was twisted CW, the other CCW. Place in a 'canoe' with powder metal, welded & drawn out {after removing the canoe}.


n/a  =  not applicable
