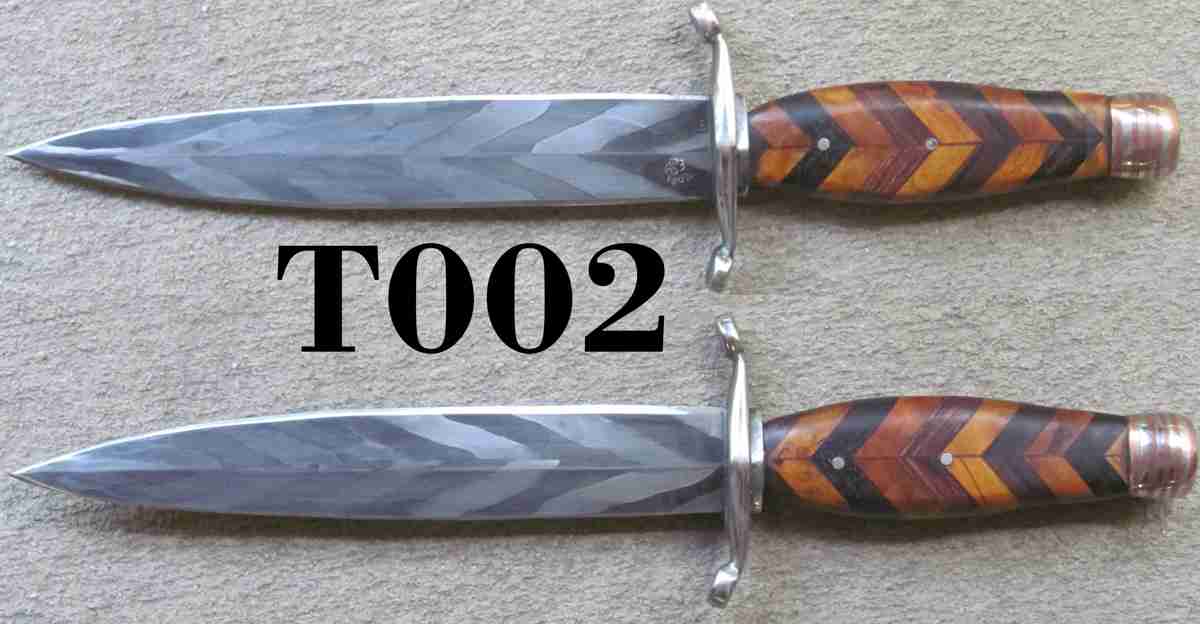

T002  $1000


Collectable Date of Construction: 2020-03

Blade Characteristics
   Steel Type: 203E & 1084 -Powder
   Composition  :  Twisted
   Billet #  :  n/a
   Number of Layers: n/a
   Pattern: Twist
   Etch: Medium
   Polish: Satin

Dimension (inches)
      Length: 8
      Max Thickness: 0.175
      Min Thickness: 0.09
Handle Characteristics
   Grip Material: Ziricote + ash
   Grip Type : Dagger
   Fittings Material: Cupric Nickel guard & Moke pommel
   Fasteners: 1/4" pommel bolt

Dimension (inches)
      Length: 5
      Max Thickness: 1.03
      Min Thickness: 0.608
      Max Height: 1.365
      Min Height: 0.87
Heat Treatment
   Austenization & Quenching
      Heat Source: Austenizer
      Temperature (F): 1500
      Quench material: Oil
      Quench temperature (F): ambient

Tempering
      Temperature (F): 400
      Duration (hrs): 2
      Repetitions: n/a


Full sheath provided

Comments
Blade was made of 8 rods of 203E (=W) & 1084 (=B) 1/4" square x 6" - Stacked in 2 rows {BW & WB}. One was twisted CW, the other CCW. Forged squared, tack welded and forge welded. Handle was made to echo the blade..


n/a  =  not applicable
