C022  Sold

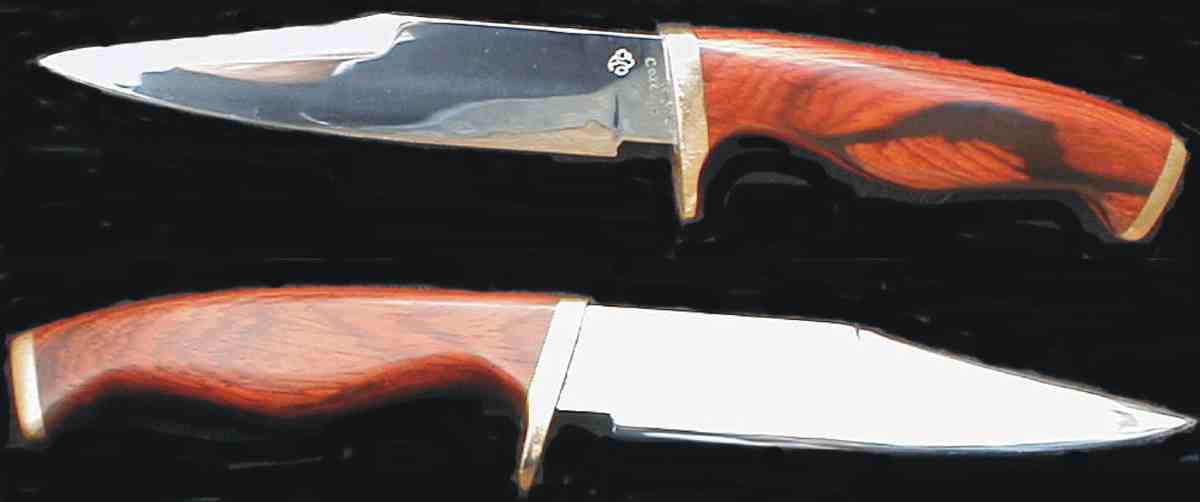

Bowie w false edge Date of Construction: 2003-01

Blade Characteristics
   Steel Type: 52100
   Composition  :  Tool steel
   Billet #  :  N/A
   Number of Layers: N/A
   Pattern: N/A
   Etch: N/A
   Polish: High

Dimension (inches)
      Length: 5.75
      Max Thickness: 0.174
      Min Thickness: 0.05
Handle Characteristics
   Grip Material: Cocobolo
   Grip Type : Guard & pommel
   Fittings Material: Brass
   Fasteners: Epoxy/pommel

Dimension (inches)
      Length: 5.5
      Max Thickness: 0.916
      Min Thickness: 0.6
      Max Height: 1.31
      Min Height: 0.945
Heat Treatment
   Austenization & Quenching
      Heat Source: Lava Pool
      Temperature (F): 1500
      Quench material: Salt Pot
      Quench temperature (F): 475

Tempering
      Temperature (F): N/A
      Duration (hrs): N/A
      Repetitions: N/A


Full sheath provided

Comments
Steel Teeth : This blade and it's brother, C023, were forged from 52100 (I thought O1 was hard on the power hammer and my arm!). Both grips are cocobolo. The clip point bowie has brass fittings and the non-clip point has nickel-silver/copper mokume fittings. Both tangs are ~5/8" wide tapering to 1/4" over a 4" run. The clip point pommel is secured by bolting to the tang while the mokume pommel is secured by a pin (w sheath). They were differentially hardened using the Japanese clay coat technique resulting in.45-50 RC at the spine and, 55-60 RC at the edge.


n/a  =  not applicable
