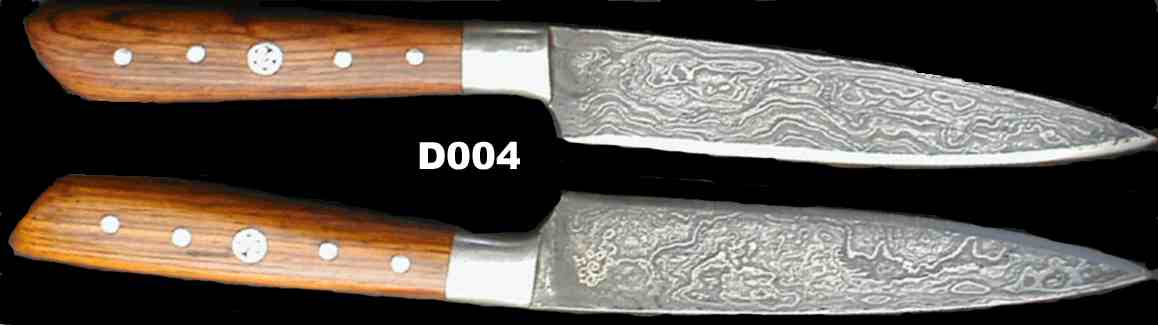

D004  Sold


Full Tang-straight pt Date of Construction: 2004-02

Blade Characteristics
   Steel Type: Damascus
   Composition  :  O1/L6/5160/203E/WI
   Billet #  :  3-Nov
   Number of Layers: 500+
   Pattern: Random
   Etch: Medium
   Polish: 600-1200

Dimension (inches)
      Length: 5.069
      Max Thickness: 0.178
      Min Thickness: 0.094
Handle Characteristics
   Grip Material: Cocobolo
   Grip Type : Bolster & stabs
   Fittings Material: Nickel Silver
   Fasteners: Pins+ Mosaic Pin

Dimension (inches)
      Length: 4.183
      Max Thickness: 0.701
      Min Thickness: 0.503
      Max Height: 0.895
      Min Height: 0.425
Heat Treatment
   Austenization & Quenching
      Heat Source: Lava Pool
      Temperature (F): 1500
      Quench material: Salt Pot
      Quench temperature (F): 475

Tempering
      Temperature (F): N/A
      Duration (hrs): N/A
      Repetitions: N/A


No sheath

Comments
Measurements are for D001 - D004 Sold before I measured it.


n/a  =  not applicable
