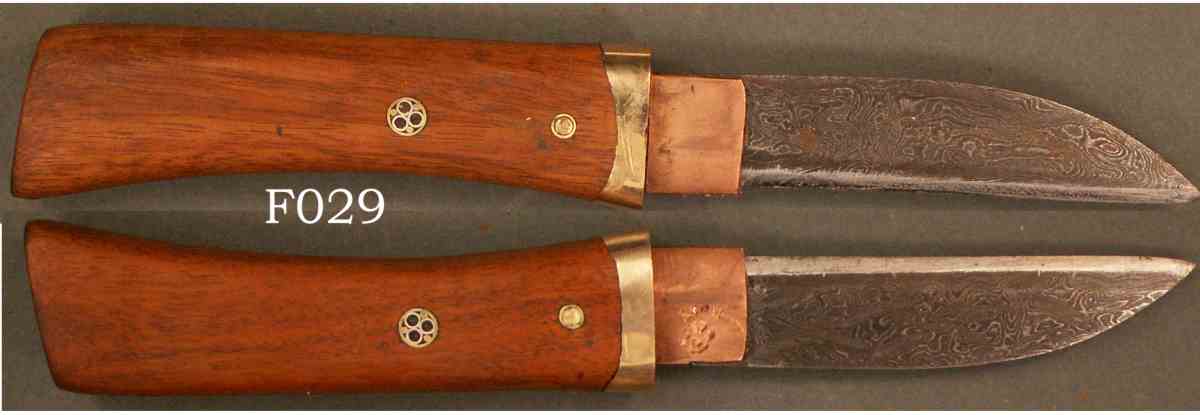

| NamBam III | Date of Construction: 2006-08 |
| Blade Characteristics Steel Type: Damascus Composition : O1/L6/5160/203E/WI Billet # : 6-Jul Number of Layers: 500+ Pattern: Random Etch: Medium Polish: Satin Dimension (inches) Length: 3.74 Max Thickness: 0.119 Min Thickness: 0.09 |
Handle Characteristics Grip Material: Kiatt Grip Type : Guard & pommel Fittings Material: Bronze (93:7) Fasteners: Pins+ Mosaic Pin Dimension (inches) Length: 4.105 Max Thickness: 0.689 Min Thickness: 0.63 Max Height: 1.13 Min Height: 0.901 |
Heat Treatment Austenization & Quenching Heat Source: Lava Pot Temperature (F): 1500 Quench material: Salt Pot Quench temperature (F): 475 Tempering Temperature (F): N/A Duration (hrs): N/A Repetitions: N/A |
Comments
| Basket-weave damascus; guard and sheath ring are bronze and inlet into the wood; copper habaki; blade can be removed from handle |
|

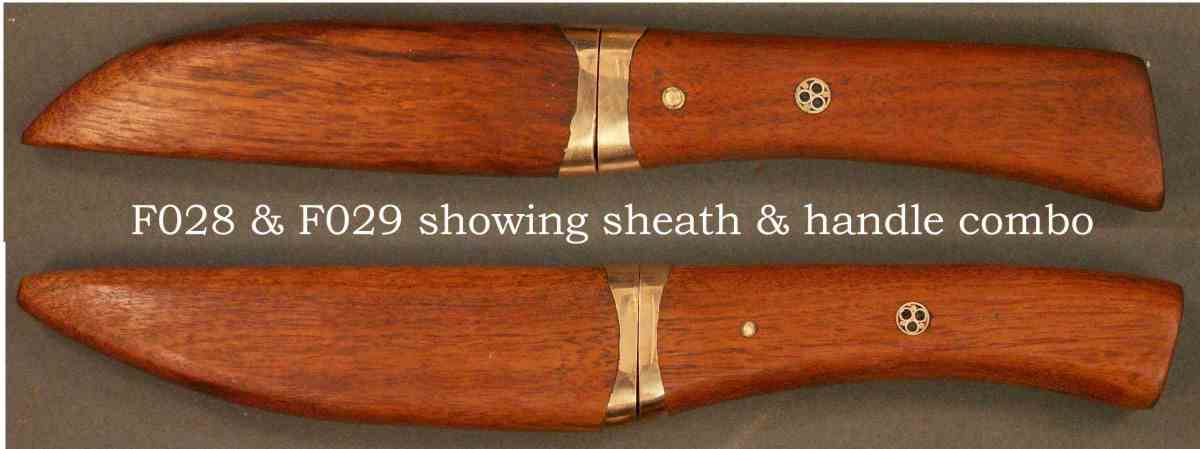

Sheaths are smoothed to the handle
|
 |
n/a = not applicable
