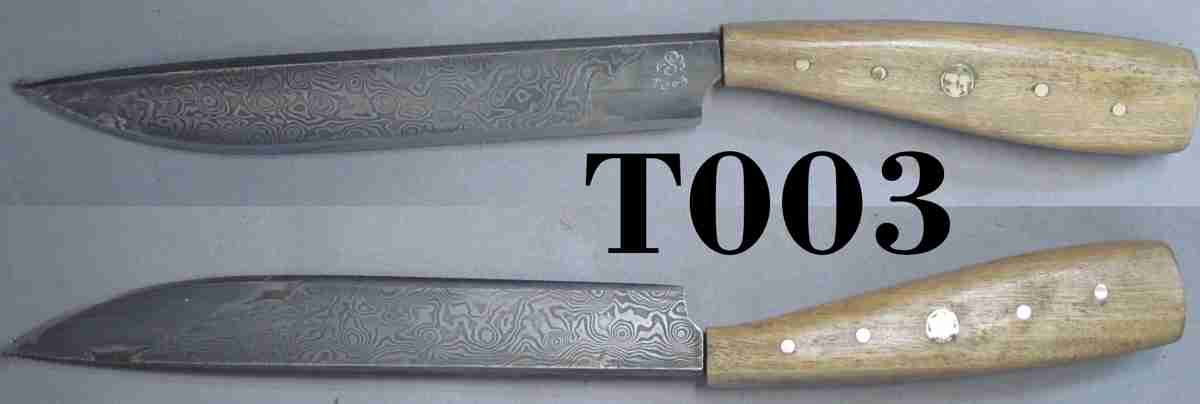

T003  Sold

Collectable

Date of Construction: 2020-05

Blade Characteristics    Steel Type: Raindrop    Composition  :  1075-8670 66 layers    Billet #  :  n/a    Number of Layers: n/a    Pattern: Raindrop    Etch: Medium    Polish: Satin    Dimension (inches)       Length: 6.9       Max Thickness: 0.254       Min Thickness: 0.109

Handle Characteristics    Grip Material: Unknown    Grip Type : Test of concept    Fittings Material: brass    Fasteners: pin    Dimension (inches)       Length: 4.6       Max Thickness: 0.775       Min Thickness: 0.615       Max Height: 1.132       Min Height: 0.615

Heat Treatment    Austenization & Quenching       Heat Source: Oven       Temperature (F): 1500       Quench material: Oil       Quench temperature (F): ambient    Tempering       Temperature (F): 400       Duration (hrs): 2       Repetitions: n/a

Cover provided

Comments

Exploration of controlling raindrop patterns - 11 layer intial billet 1.5" x 1" x 8"- rolling mill to 48" - 6 pcs -- weld to 66 layers. Forged to 1.25 x 8 x ~0.45. Drilled on 1 side with 0.1 drill 0.3 deep at .35" x .17 spacing staggered. Forged out to 1/8" thick ~12" x 2.0 - saw in haft & weld to a beveled core,

n/a  =  not applicable
